Replace Your System Or Just Upgrade It

Whole Home Tankless

Install a MODEL 3 Water Heater in your home or business for endless hot water. The MODEL 3 works well in new construction and in older homes as a replacement to any gas or electric tank-type or tankless water heater. Since the unit is compact and doesn’t require venting, it can be placed almost anywhere.

Point-of-use Tankless

A MODEL 3 can be installed in a single location to provide immediate hot water or several units can be installed throughout the home or business for faster hot water at each location. You will save energy and waste less water.

In-Line Remote Booster

Tired of waiting for your water to get hot? Install a MODEL 3 (or several) downstream of your existing gas or electric tank-type or tankless water heater for hot water in seconds. Once the incoming water has reached a temperature greater than the setpoint of the MODEL 3, our unit powers down and lets the existing unit provide the hot water. You’ll save time, money and energy.

In-Line Extender

Never run out of hot water again. Install a MODEL 3 on the outlet side of your existing electric or gas water heater. It acts as a backup booster, only powering up when your existing system is unable to keep up with your household demand. Plus, when your tank eventually fails or runs out of hot water, you will still have a backup hot water source.

In-Line Turbocharger

Reduce wear and tear as well as your energy costs by adding a MODEL 3 to your existing water heating system. Simply set your existing unit to a lower temperature and let the MODEL 3 “turbocharge” the incoming water to the higher setpoint temperature.

Solar Hot Water Booster

Just think of all of the options — log cabins, campgrounds, mobile showers. The MODEL 3 can take the warm water created by your existing solar panels and heat it to your desired setpoint. It can also help to extend the length of your shower.

Technical Specs


Product Information

technical specs of MODEL 3

Product Information

Weight
35 lbs.
Connections
3/4” NPT male connections
Digital Controls
LED panel, Full Wi-Fi connectivity & mobile app
Max Temp Rise
41° F rise at 4 GPM / 82° F rise at 2 GPM
Standard Warranty
6-year full unit exchange; Optional 4-year extended warranty available
Download Specs




Operating Ranges

technical specs of MODEL 3

Operating Ranges

Voltage
208-240 V
Frequency
50/60 Hz
Power:
6.2-24 kW
Working Pressure (Tested to 400 psi)
30-80 psi /(2.06 bar-5.52 bar) 206 kPa-552 kPa
Conductivity
80-2000 µS
Current
User selectable 30-100 A

Stay Connected

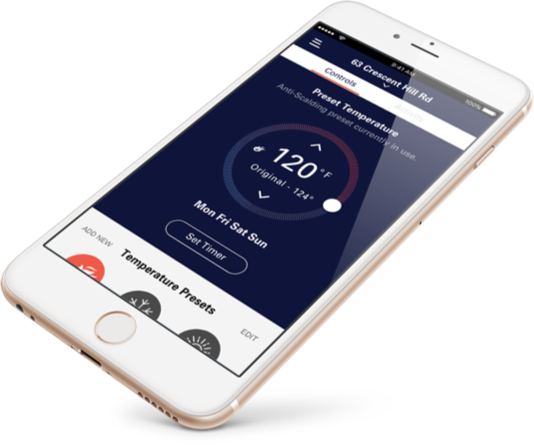

Control your hot water from anywhere

Our Wi-Fi enabled mobile app allows you to monitor the amount of hot water and energy you use each day in your home. You can also select and maintain your favorite temperature within 1° F for a shower or even limit showers to certain times during the day.

How many will you need?

To enjoy purer, instant hot water with the MODEL 3, the number of units you will need to do so is based on your location, power setting you choose, and how much water you need at any given time.

2.0 Gallons Per Minute (GPM) Flow Rate

to achieve 110° F water temperature

  • Need 1 MODEL 3 Water Heater, set at 100 A
  • Need 1 MODEL 3 Water Heater, set at 50 A

4.0 Gallons Per Minute (GPM) Flow Rate

to achieve 110° F water temperature

  • Need 2 MODEL 3 Water Heaters, both set at 100 A
  • Need 2 MODEL 3 Water Heaters, one set at 100 A and one at 50 A
  • Need 1 MODEL 3 Water Heater, set at 100 A
Average Temperature of Shallow Ground Water

Temperatures In Degrees Fahrenheit

Note: All ground water temperatures on map are weighted with winter fluctuations.

2.0 GPM flow Rate

with 110°F water temperature

  • Need 1 MODEL 3 Water Heater, set at 100A
  • Need 1 MODEL 3 Water Heater, set at 50A
Average Temperature of Shallow Ground Water

Temperatures In Degrees Fahrenheit

Note: All ground water temperatures on map are weighted with winter fluctuations.

4.0 GPM flow Rate

with 110°F water temperature

  • Need 2 MODEL 3 Water Heaters, both set at 100A
  • Need 2 MODEL 3 Water Heaters, one set at 100A and one at 50A
  • Need 1 MODEL 3 Water Heater, set at 100A
Average Temperature of Shallow Ground Water

Temperatures In Degrees Fahrenheit

Note: All ground water temperatures on map are weighted with winter fluctuations.
